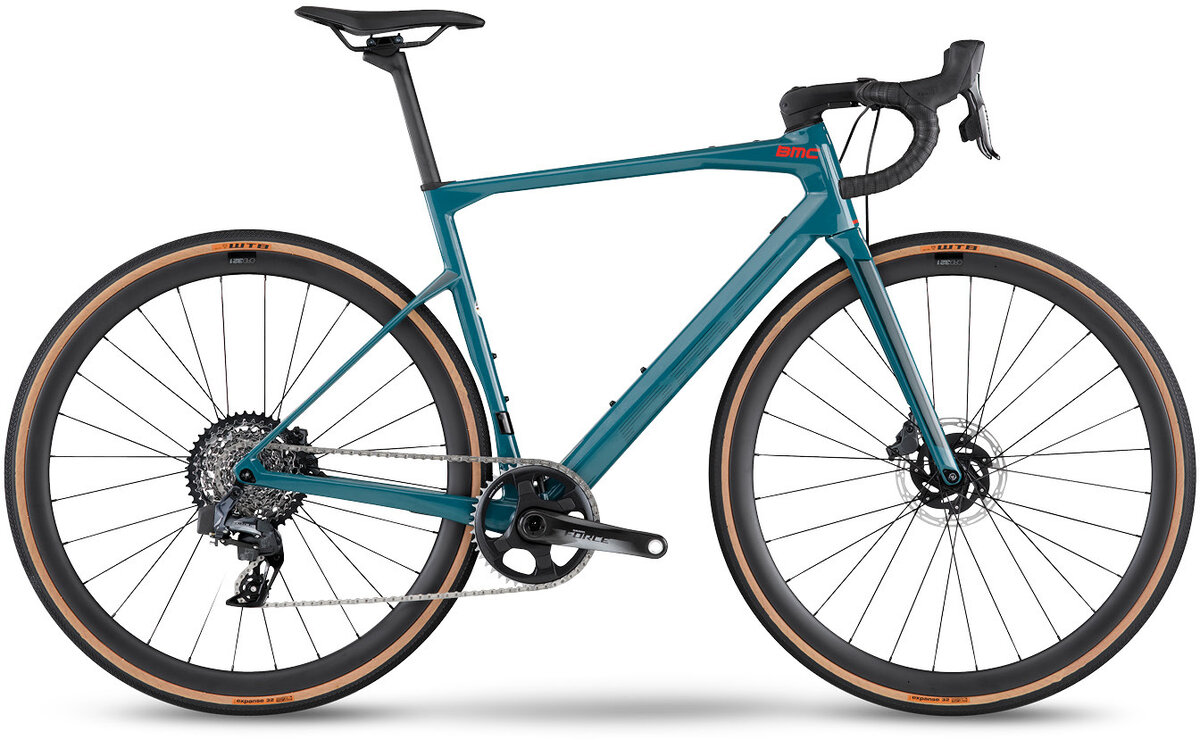

BMC Roadmachine X ONE

BMC Roadmachine X ONE
  • Color: Petrol Green/Red
$6,299.00
Color: Petrol Green/Red
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

THE MISSING LINK

The Roadmachine X is the most progressive Roadmachine ever. Now in an updated carbon version, it merges signature compliance and performance with significantly increased capabilities to take the edge off the roughest roads. Designed with proven endurance geometry and wide adjustability.

Reset the boundaries of your riding adventures. From epic roads to distant gravel tracks, Roadmachine X provides the missing link.

TUNED COMPLIANCE CONCEPT (TCC) ENDURANCE
The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both smooth and fast.

VERSATILE GEOMETRY
The long front-end improves control on any terrain, while the short chainstays reward you with rapid accelerations.

PREMIUM CARBON FORK AND FLAT-MOUNT BRAKES
Agile handling and terrain-smoothing compliance are benefits of our premium carbon fork. Flat-mount brakes blend in with the clean, minimalist design in true Swiss style.

INTERNAL CABLE ROUTING
Improved durability and a clean, understated look.

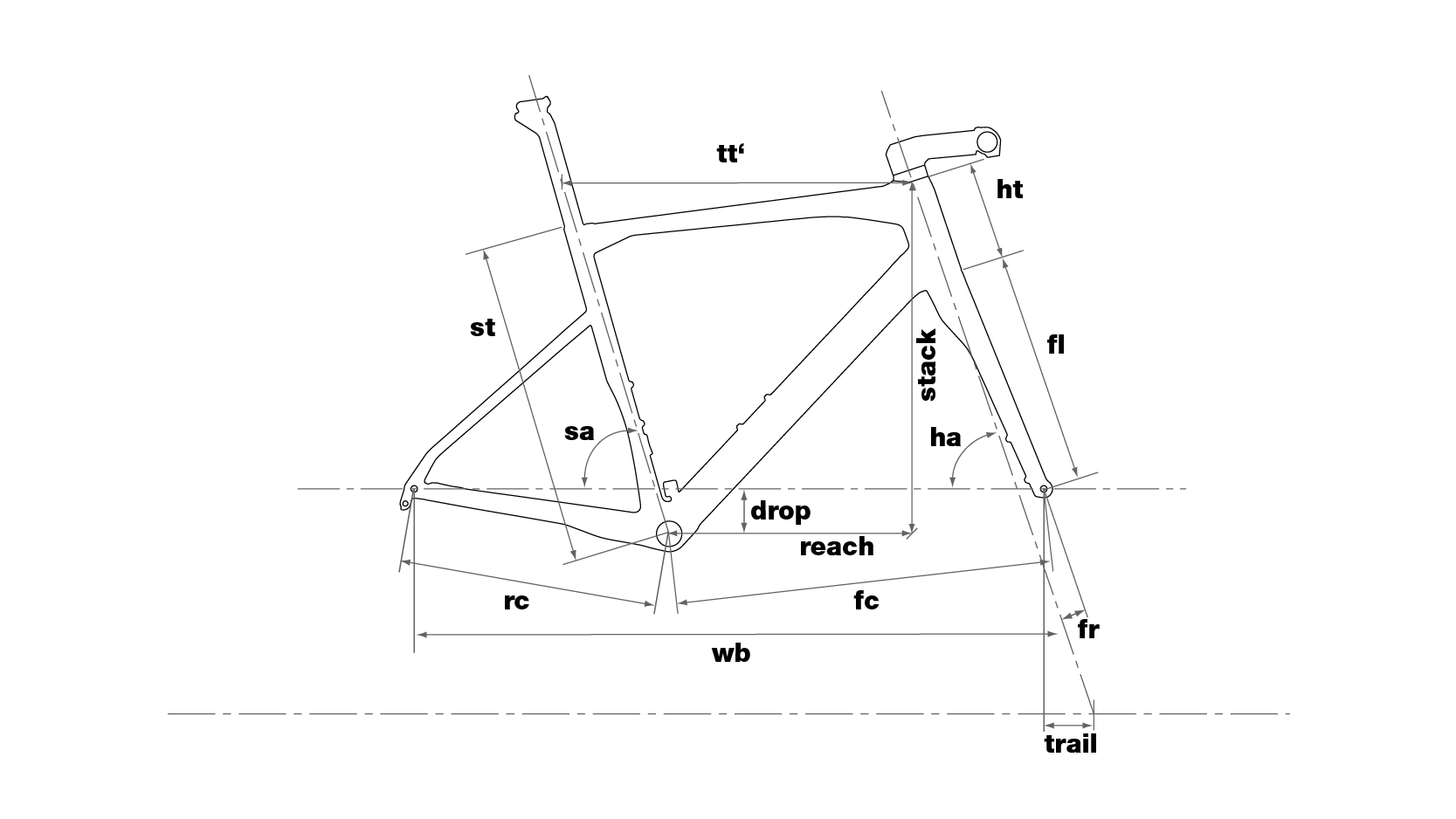

Geometry

Geometry Chart:
SIZE475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Top Tube MM (tt) 522 532 546 556 568 583
Wheelbase MM (wb) 982 999 997 1008 1020 1035
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Seatpost Length MM 330 380 380 380 380 430
Stack MM 516 541 562 586 610 644
Trail MM (trail) 63 63 63 63 63 63
Rear Center MM (rc) 410 410 410 410 410 410
Reach MM (reach) 374 382 386 390 394 398
Head Tube MM (ht) 112 139 156 181 206 242
Head Angle (ha) 71.2 71.2 72 72 72 72
BB Drop MM (drop) 71 71 71 71 71 71
Stem Length MM 80 90 100 100 110 110
Seat Tube MM (st) 420 457 500 522 539 573
Post Offset MM 15 15 15 15 15 15
Crank Length MM 170 170 172.5 172.5 175 175
Fork Rake MM (fr) 50 50 45 45 45 45
Front Center MM (fc) 583 599 597 609 621 635
Fork Length MM (fl) 375 375 375 375 375 375
Bar Width MM 400 420 420 420 420 440
Bar Reach MM 70 70 70 70 70 70
Bar Drop MM 125 125 125 125 125 125

Specs

Frame Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance
Fork Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance
Rims CRD-321 Carbon, Tubeless Ready, 35mm
Hubs CRD-321
Tires WTB Expanse, 32mm
Bottom Bracket PF86 Bottom Bracket
Crankset SRAM FORCE AXS 1 44T
Shifters SRAM FORCE eTap AXS HRD
Rear Derailleur SRAM FORCE eTap AXS
Cassette/Freewheel SRAM FORCE AXS
Chain SRAM FORCE 12 Speed
Brakes SRAM FORCE eTap AXS HRD, Centerline X Rotors (160/160)
Handlebars BMC RAB 02, Ergo Top Shape, Compact Bend
Stem BMC ICS1 - Integrated Cockpit Design
Seatpost Roadmachine X Premium Carbon D-Shaped Seatpost, 15mm Offset
Saddle Fizik Terra Argo X3
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Petrol Green/Red / 47cm 07630027871098 30001355
Petrol Green/Red / 51cm 07630027871081 30001356
Petrol Green/Red / 54cm 07630027871173 30001357
Petrol Green/Red / 56cm 07630027871265 30001358
Petrol Green/Red / 58cm 07630027871258 30001359
Petrol Green/Red / 61cm 07630027871241 30001360
